How to design curtain walls with aluminum veneer?

  • Author: Jinba Aluminum Industry (Guangdong) Co., Ltd
  • Release time: February 21, 2025 13:38:45
  • Click:0

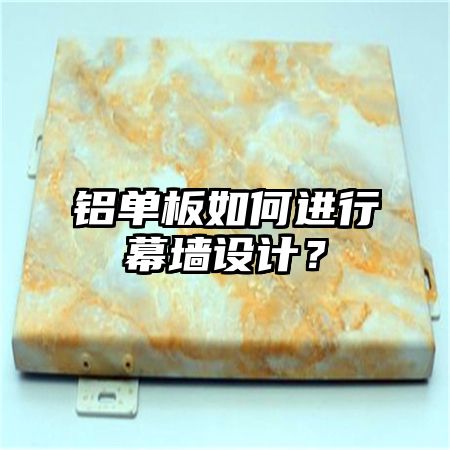

铝单板如何进行幕墙设计?

How to design curtain walls with aluminum veneer?

As an important structural form of building exterior walls, curtain walls not only have decorative functions, but also play various roles such as waterproofing, thermal insulation, and thermal insulation. Aluminum veneer is widely used in curtain wall design, and its unique characteristics and advantages make it an ideal choice for curtain wall design. This article will provide a detailed explanation on how to design aluminum veneer curtain walls from four aspects: material selection, design, installation, and maintenance.

1、 Material selection

1. Suitable aluminum alloy materials: The first step in the design of aluminum veneer curtain walls is material selection. When selecting materials, it is necessary to choose high-quality aluminum alloy materials, considering factors such as their mechanical properties, corrosion resistance, and surface treatment effects. Common aluminum alloy materials include 6061 and 6063, which have good strength and corrosion resistance.

2. Appropriate plate thickness: It is very important to choose the appropriate thickness of aluminum veneer according to the requirements of curtain wall design. Thinner aluminum veneers are suitable for small curtain wall projects, while thicker aluminum veneers are suitable for large and high-rise curtain wall projects. When choosing the thickness of the panel, the structure and support system of the curtain wall should also be considered.

3. Color and surface treatment: The color and surface treatment of aluminum veneer play an important role in curtain wall design. By using different spraying methods and processing techniques, a variety of appearance effects can be achieved. According to the architectural style and design requirements, select appropriate colors and surface treatment techniques to coordinate the aluminum veneer with the overall architectural style.

2、 Styling

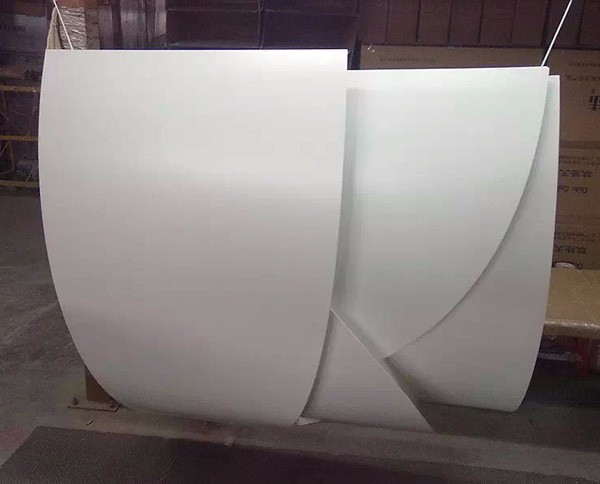

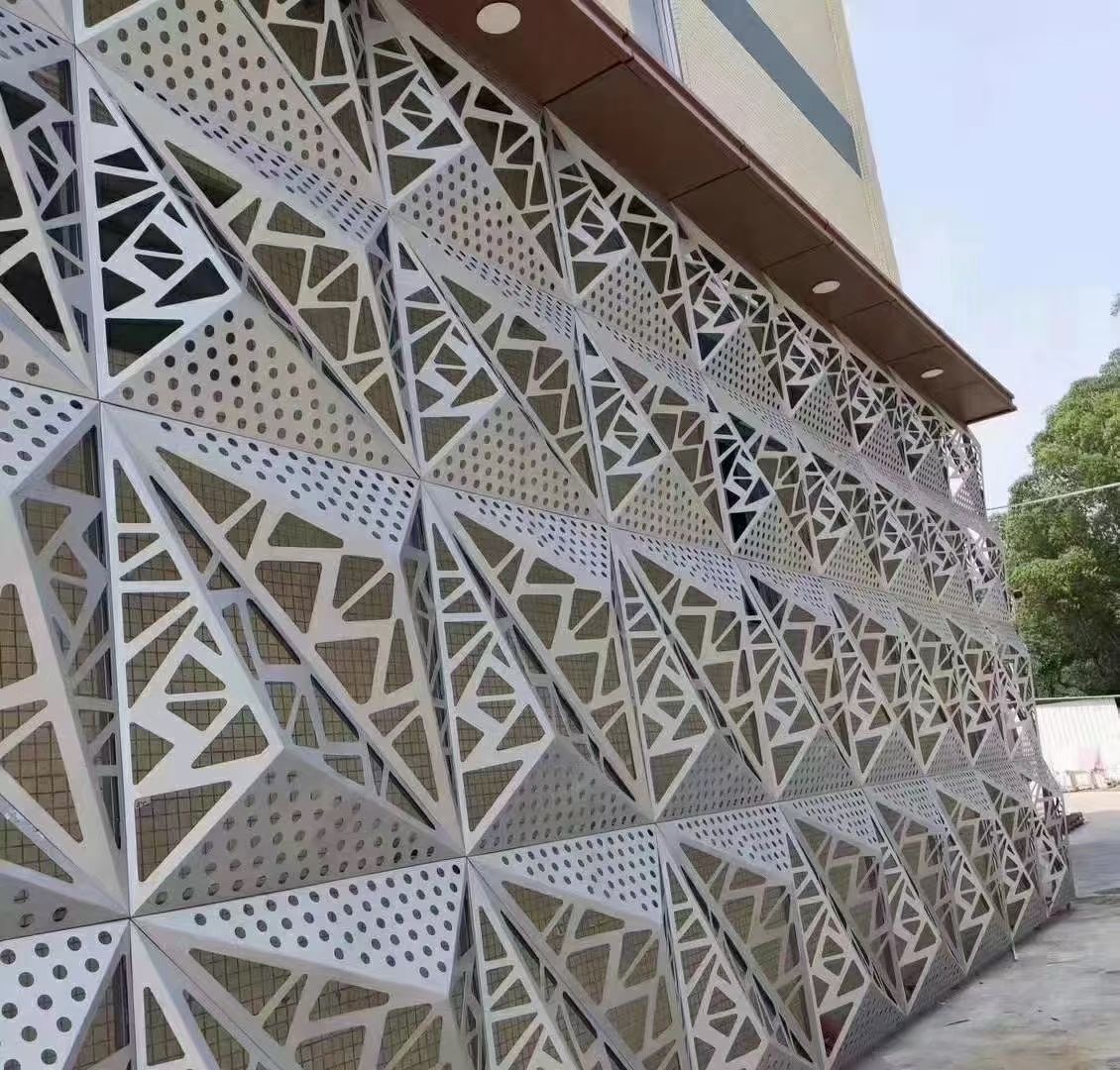

1. Plate design: In the design of aluminum veneer curtain walls, plate design is a crucial step. By processing and deforming aluminum veneer, a variety of board shapes can be created, thereby achieving rich and diverse facade effects. The design of the board should consider factors such as the overall style of the building, reflection and refraction of light, and strive to achieve the goals of aesthetics, practicality, and energy efficiency.

2. Connection method: Connection is an important part of curtain wall design. For aluminum veneer curtain walls, the connection method directly affects the stability and overall effect of the curtain wall. Common connection methods include riveting, welding, and adhesive bonding, and the specific selection should be based on the characteristics of the project and the requirements of the construction.

3. The combination of glass curtain wall and aluminum veneer: The combination of aluminum veneer and glass curtain wall is one of the common forms in curtain wall design. Through reasonable design and construction, the tight combination of aluminum veneer and glass can be achieved, making the curtain wall have good air tightness, water tightness, and wind pressure resistance performance.

3、 Installation

1. Prefabrication and installation: The installation of aluminum veneer curtain walls is usually divided into two stages: prefabrication and on-site assembly. The prefabrication stage includes material processing and component fabrication, while the on-site assembly stage includes lifting, positioning, and fixing. During the installation process, it is important to ensure that the quality and dimensions of each component are accurate and meet the design requirements.

2. Support and fixing system: The support and fixing system is an important component of the installation of aluminum veneer curtain walls. The support system is responsible for bearing loads and dispersing forces, while the fixing system is responsible for securing the aluminum veneer to the support system. When selecting and designing support and fixing systems, consideration should be given to the structure, strength, and stability of the curtain wall.

3. Safety considerations: In the installation process of aluminum veneer curtain walls, safety is always the primary consideration. Construction personnel must strictly follow the specifications and operating procedures to ensure safety during the construction process. At the same time, it is necessary to ensure the safety management of the construction site to avoid accidents.

4、 Maintenance

1. Regular inspection and cleaning: Aluminum veneer curtain walls need to be regularly inspected and cleaned during use to ensure their normal operation and appearance. Regular inspections can promptly detect and repair issues such as water leakage, detachment, and damage, ensuring the functionality and safety of the curtain wall.

2. Surface protection and maintenance: The surface of aluminum veneer is prone to contamination and corrosion, and requires appropriate protection and maintenance. Surface protection measures include spraying anti fouling coatings and anti-corrosion treatments, while maintenance includes cleaning, painting, and replacement. Reasonable maintenance measures can extend the service life of aluminum veneer and maintain its good appearance.

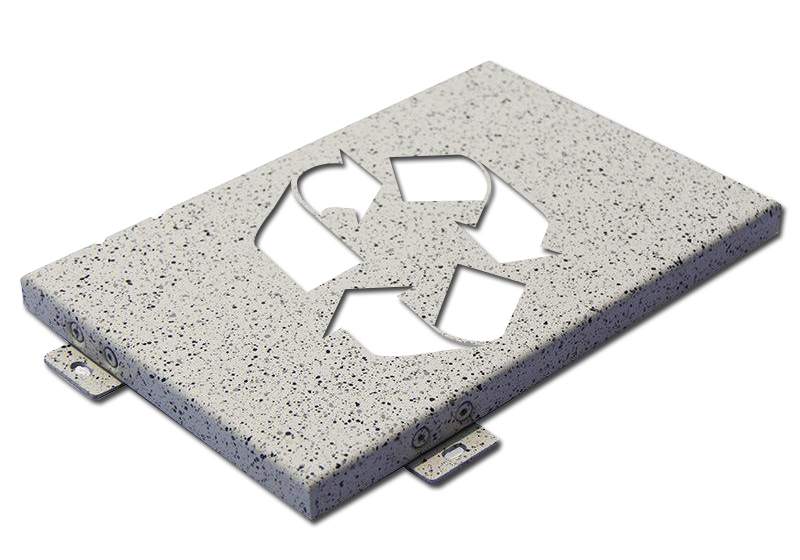

3. Environmentally friendly and sustainable: In the design and maintenance process of aluminum veneer curtain walls, attention should be paid to environmental friendliness and sustainability. Choose materials with low energy consumption, resource conservation, and recycling, make reasonable use of energy and water resources, and reduce the impact on the environment. Meanwhile, it is important to avoid using harmful substances and chemical cleaning agents during maintenance.

5、 Summary:

Through the detailed explanation of how to design curtain walls with aluminum veneer in this article, we can draw the following conclusion: material selection, styling, installation, and maintenance are four important aspects in curtain wall design. Correctly selecting suitable aluminum alloy materials, designing plate types and connection methods reasonably, installing strictly according to specifications, regularly inspecting and maintaining curtain walls can ensure the functionality and aesthetic effect of aluminum veneer curtain walls, and improve their sustainable development capabilities.
